The Unsung Hero: Understanding Your Water Pressure Regulator

Why Your Home Depends on a Pressure Reducing Valve

A pressure reducing valve (PRV), also known as a water pressure regulator, is a crucial device installed on your home's main water line. It automatically reduces high water pressure from the municipal supply to a safe, steady level for your plumbing system, typically between 40-60 PSI. This protects your pipes, fixtures, and appliances from damage caused by excessive pressure.

What a Pressure Reducing Valve Does:

• Reduces incoming pressure - Lowers variable, high street pressure (often 80-150 PSI) to a constant, safe level.
• Protects your plumbing - Prevents damage to pipes, joints, fixtures, and appliances.
• Saves water and energy - Reduces water waste and lowers heating costs by controlling flow.
• Eliminates noise - Stops water hammer, banging pipes, and vibrating sounds.
• Extends equipment life - Protects washing machines, dishwashers, and water heaters.

If you're in the Arlington or Falls Church area and notice high water pressure, banging pipes, frequent leaks, or high water bills, your PRV may need service or installation. Without a functioning PRV, your plumbing system is under constant stress. At Cherry Blossom Plumbing, we understand that the pressure reducing valve is the unsung hero of your home, and we treat it as the critical first line of defense it is.

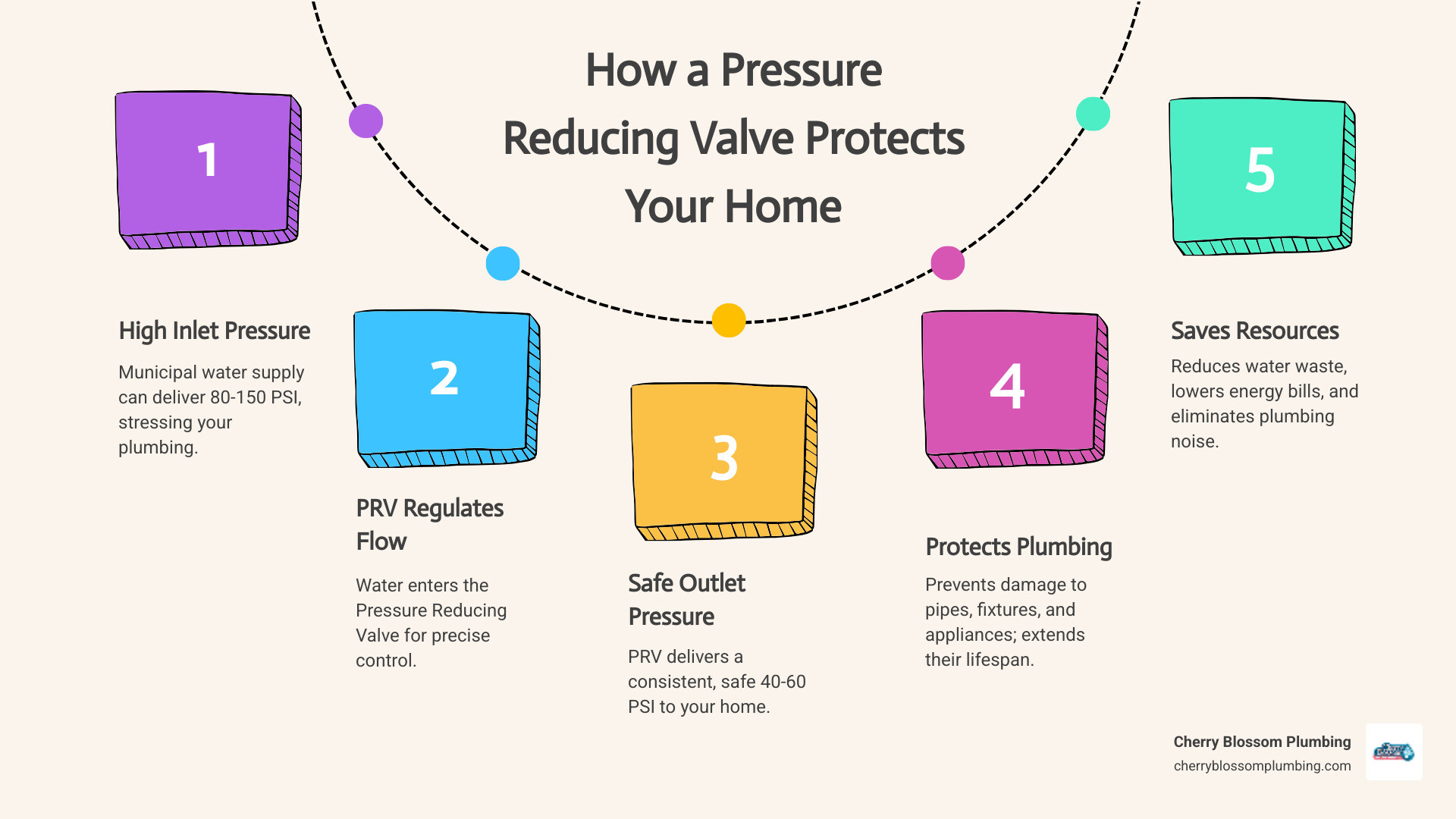

How a Pressure Reducing Valve Works

A pressure reducing valve acts like a gatekeeper for your home's water supply. When water from the municipal line rushes in at high pressure—sometimes over 100 PSI—the PRV automatically throttles it down to a safe, steady pace before it enters your plumbing.

The mechanism is based on a simple force balance. Inside the PRV, a spring-loaded diaphragm (or piston) senses the pressure. High-pressure water from the street pushes on one side of the diaphragm, while a calibrated spring pushes back from the other. When incoming pressure is too high, it overcomes the spring's force, causing the diaphragm to move and narrow the valve opening. This restriction slows the water down, naturally dropping its pressure. The valve continuously adjusts to maintain a consistent downstream pressure, opening wider when you turn on a faucet and closing slightly as pressure builds back up. This all happens automatically without any electricity.

For a deeper understanding of how pressure fluctuations can create havoc in Northern Virginia homes, take a look at our guide on Water Pressure Problems Northern VA.

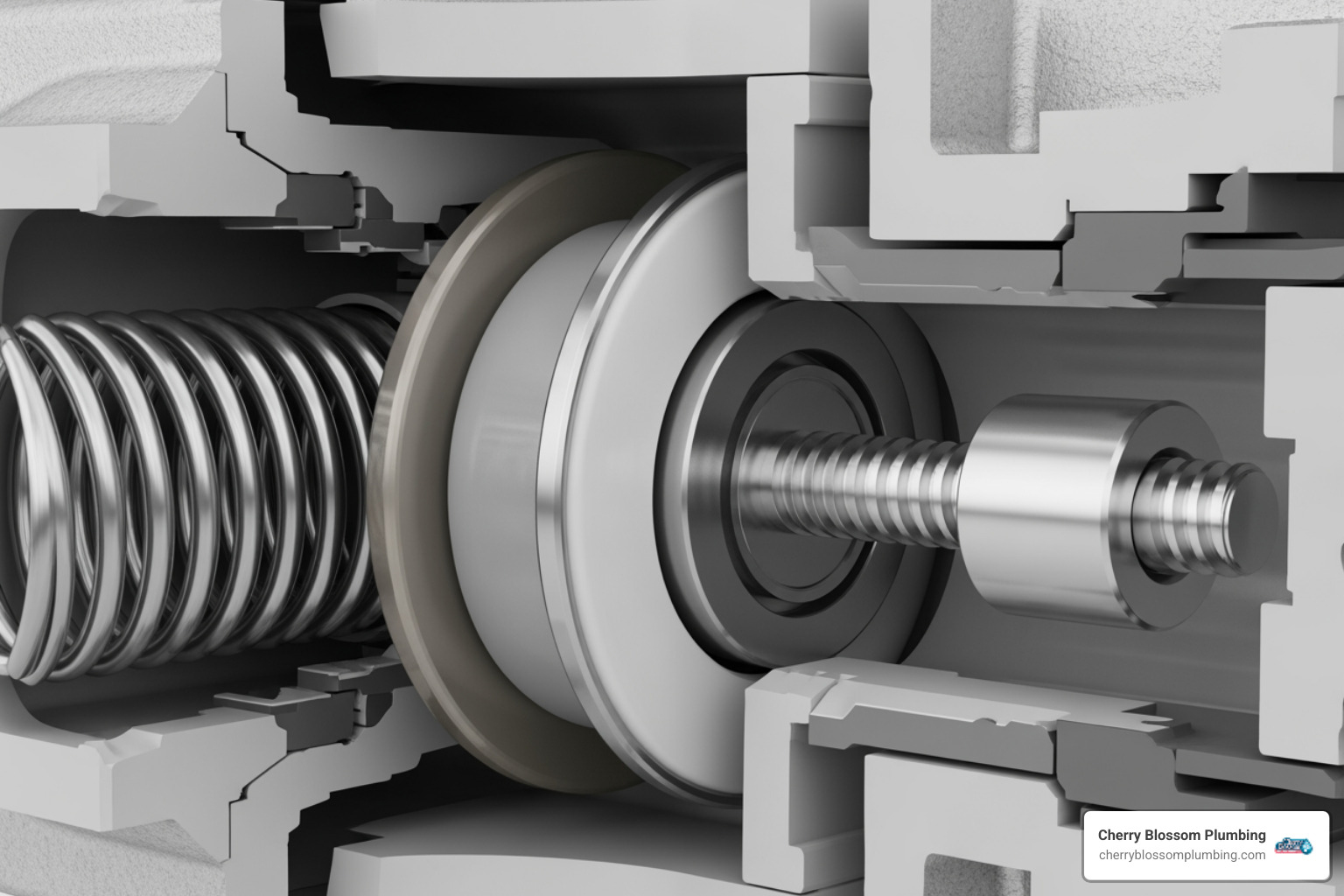

Key Components and Types

The main components of a PRV work in concert:

• Adjusting Screw: Located on top, this allows a plumber to set the desired downstream pressure.
• Spring: This provides the counter-force to the incoming water pressure.
• Diaphragm: This flexible disc moves in response to pressure changes, controlling the valve opening.
• Valve Seat: This is the stationary part of the valve that the moving components press against to restrict flow.

Most homes in Arlington and Falls Church use direct-acting valves, which are reliable and perfect for residential needs. Pilot-operated valves are more complex and typically used in commercial settings for higher flow rates.

Understanding Your Home's Pressure Settings

Water pressure is measured in PSI (Pounds per Square Inch). The ideal range for most homes is between 40 and 60 PSI. This provides strong flow for showers and appliances without stressing pipes and fixtures.

Most PRVs are factory-preset to around 50 PSI, but this is adjustable. If your pressure is off, a professional can attach a pressure gauge and use the adjusting screw to dial it in perfectly. Tiny turns make a big difference, so this adjustment is best left to an experienced plumber to avoid setting the pressure too high or too low.

The Benefits of a Properly Functioning PRV

A pressure reducing valve acts as the quiet guardian of your home's plumbing system, providing benefits that touch nearly every aspect of your home's water use.

• System Safety: High water pressure is a genuine threat, putting tremendous strain on every pipe, joint, and fixture. A PRV is the first line of defense against leaks and catastrophic pipe bursts.
• Water and Energy Conservation: When pressure is too high, more water flows from faucets and showers than you need, wasting water and the energy used to heat it. A PRV lowers water and energy bills by ensuring optimal flow.
• Extends Appliance Life: Your dishwasher, washing machine, and water heater are designed to work within specific pressure ranges. Regulated pressure prevents premature wear and tear, protecting these expensive investments.
• Reduced Plumbing Noise: A PRV eliminates the loud banging of water hammer, as well as other humming or vibrating sounds caused by high-velocity water flow.

Understanding the dangers of unchecked high water pressure is crucial for any homeowner. Learn more about it in our article on High Water Pressure.

Preventing Damage and Eliminating Water Hammer

High water pressure is like a constant stress test on your plumbing. Pipe joints and connections are particularly vulnerable, and excess force can weaken them over time, leading to drips and leaks. The seals and gaskets in faucets, toilets, and appliances also deteriorate much faster, causing them to fail prematurely. Your washing machine, dishwasher, and water heater all suffer from unregulated pressure, which can cause hoses to burst and internal components to wear out years ahead of schedule.

If you've ever heard a loud bang from your walls when a faucet shuts off, you've experienced water hammer. This hydraulic shock happens when fast-moving water is forced to stop suddenly, sending a damaging pressure wave through your pipes. A properly functioning pressure reducing valve is the best solution, as it slows the water to a manageable velocity, dramatically reducing the force of these sudden stops and eliminating the noise.

For more detailed information on why those pipe noises occur and what we can do about them, refer to our Water Pressure Problems Arlington VA Guide.

PRV vs. Pressure Relief Valve: A Critical Distinction

A pressure reducing valve (PRV) and a pressure relief valve sound similar, but they perform entirely different jobs. Understanding the distinction is critical for your home's plumbing safety.

A pressure reducing valve is a regulator. It's installed on your main water line to continuously monitor and reduce high incoming pressure to a safe, constant level for your entire home. Think of it as cruise control for your water system.

A pressure relief valve is a safety device. It's typically found on a water heater and remains inactive until pressure inside the tank builds to a dangerous level. It then opens to release the excess pressure in an emergency to prevent a catastrophic failure. It's like an emergency pop-off valve.

The key difference is their function: one regulates pressure constantly, while the other provides emergency relief.

Here's a helpful comparison:

Both valves are vital for a safe plumbing system, but they protect you in different ways. When we discuss managing your home's everyday water pressure, we are talking about the pressure reducing valve.

Selection and Maintenance for Your Pressure Reducing Valve

Selecting the right pressure reducing valve for your home requires professional assessment. Key factors include matching the valve to your pipe size and your home's flow rate requirements, which depend on the number of bathrooms and occupants. The valve must handle peak demand without causing pressure drops. Most residential PRVs are made of corrosion-resistant brass or bronze.

For more insights specific to our area, visit our page about Pressure Reducing Valve Northern VA.

Common Issues, Maintenance, and Repair

Like any mechanical part, a PRV will eventually wear out, but it usually provides warning signs. A PRV has a typical lifespan of 10 to 15 years, though this can be shortened by hard water or very high incoming pressure.

Signs of a Failing PRV:

• Fluctuating pressure: Your shower spray weakens and strengthens randomly.
• Low water flow: A consistent drop in pressure throughout the home.
• Noise: Humming, vibrating, or a return of water hammer sounds near the valve.
• Leaks: Any water dripping from the valve itself indicates internal failure.
• Pressure Creep: Pressure slowly rises above the set point when water isn't running.

These issues are often caused by debris buildup inside the valve or simply worn internal parts like the diaphragm and spring.

Regular maintenance can extend your PRV's life. We recommend a professional inspection every few years. During a visit, a plumber can clean the internal strainer to remove debris and perform a professional adjustment using a calibrated pressure gauge to ensure your pressure is in the ideal 40-60 PSI range.

When a valve can no longer hold a steady pressure or repairs become frequent, it's time to replace it. Replacement is more cost-effective than patching an aging valve and provides peace of mind for another decade or more. While DIY repairs are tempting, incorrect installation or adjustment can cause serious plumbing issues.

For a deeper look at what goes into these repairs, check out our guide on Water Pressure Reducing Valve Repair.

Frequently Asked Questions about Water Pressure Regulators

Here are answers to the most common questions we receive from homeowners in Arlington and Falls Church about pressure reducing valves.

Why is my water pressure suddenly low?

Sudden low pressure can have several causes. Before calling a plumber, check these simple things:

• Clogged Aerators: Unscrew the tips of your faucets and clean the small screens inside.
• Shutoff Valves: Ensure your main water shutoff and any individual fixture valves are fully open.

If the problem affects your whole house and these checks don't help, the issue is likely your pressure reducing valve. A failing PRV can get stuck in a partially closed position or become clogged with debris, restricting flow. Other causes can include municipal water supply work in your area.

Can I adjust my own pressure reducing valve?

While the adjustment screw on a pressure reducing valve is accessible, we strongly advise against DIY adjustments. Without a pressure gauge, you are guessing at the pressure level. Setting it too high can damage pipes and appliances, while setting it too low results in poor flow. A small turn can cause a large pressure change. This task is best left to a professional who can dial in the pressure safely and accurately.

How often should a PRV be replaced?

A typical pressure reducing valve lasts 10 to 15 years. However, its lifespan is affected by factors like water quality and incoming pressure. Hard water with high mineral content can cause internal buildup and wear out parts faster. If your PRV is over a decade old or you're experiencing persistent issues like fluctuating pressure, noise, or leaks, it's likely time for a replacement. Replacing an aging valve is a proactive measure to prevent more significant plumbing failures.

Conclusion: Ensure Your Home's Plumbing Health

Your pressure reducing valve is the unsung hero of your plumbing system, quietly standing guard at your main water line. It converts high, unpredictable municipal pressure into the gentle, consistent flow your pipes and appliances need to function correctly and last longer.

Proactive maintenance of your PRV is not just about avoiding problems—it's about protecting your home. Maintaining proper water pressure can save you from costly repairs, lower your utility bills, and make your daily life more comfortable. At Cherry Blossom Plumbing, we've helped countless families in Arlington and Falls Church resolve pressure issues, from eliminating banging pipes to extending the life of their water heaters.

If you're experiencing fluctuating pressure, hearing water hammer, or if your PRV is more than a decade old, don't wait for a small issue to become an emergency. Our team is ready to inspect, adjust, or replace your pressure reducing valve with fast, reliable service.

For expert installation and service, trust our team to handle all your plumbing needs. Your home's plumbing health is too important to leave to chance.
